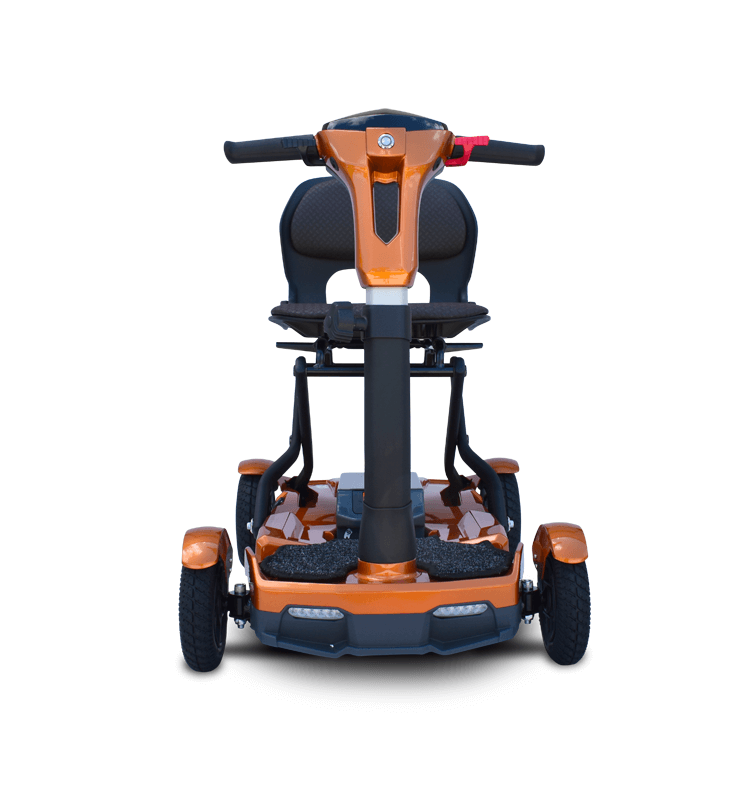

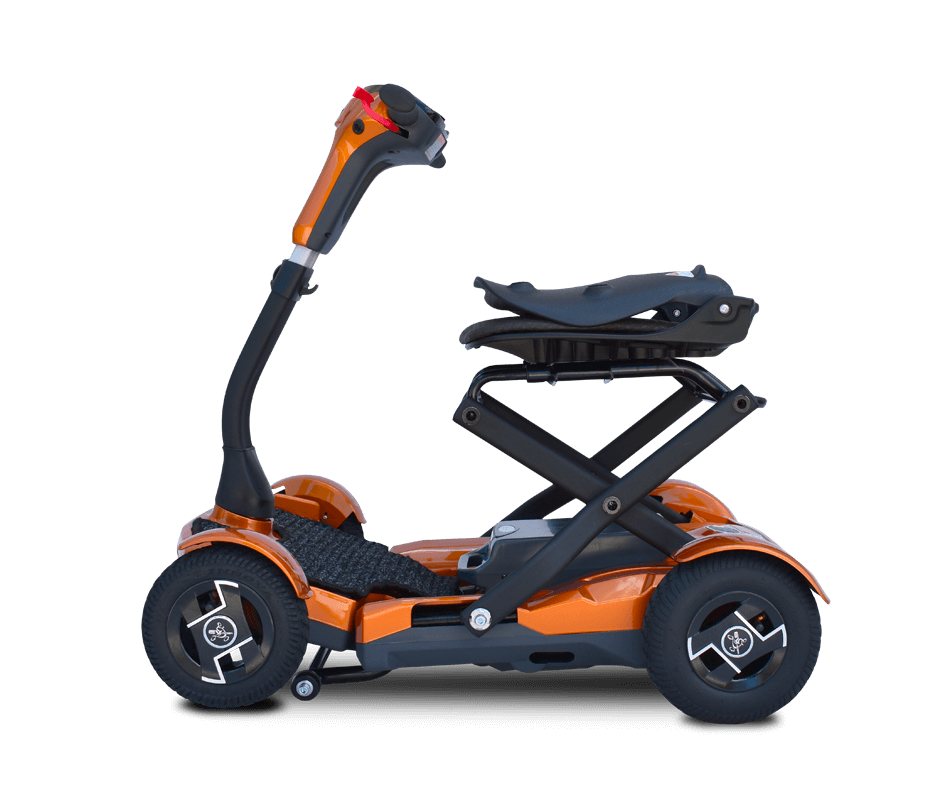

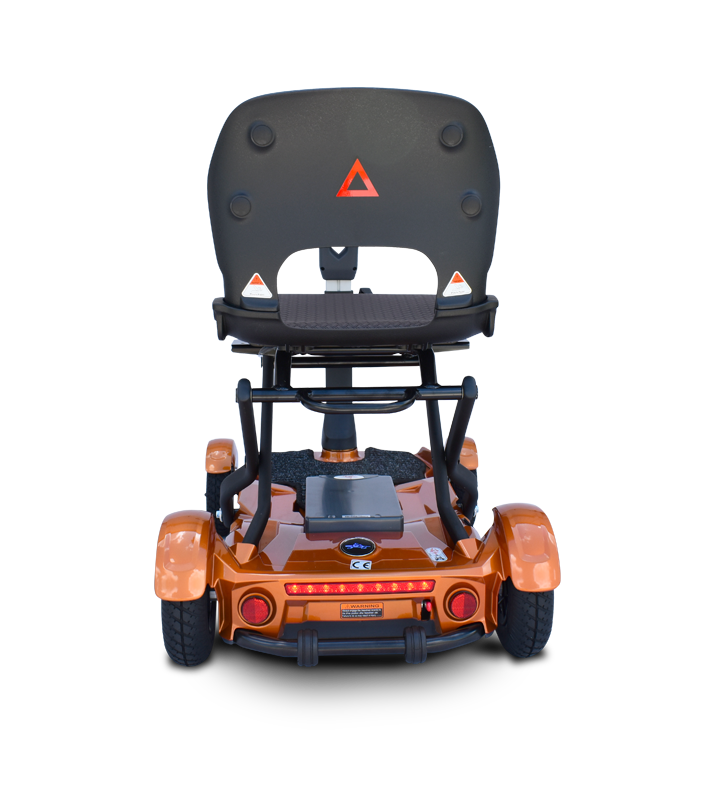

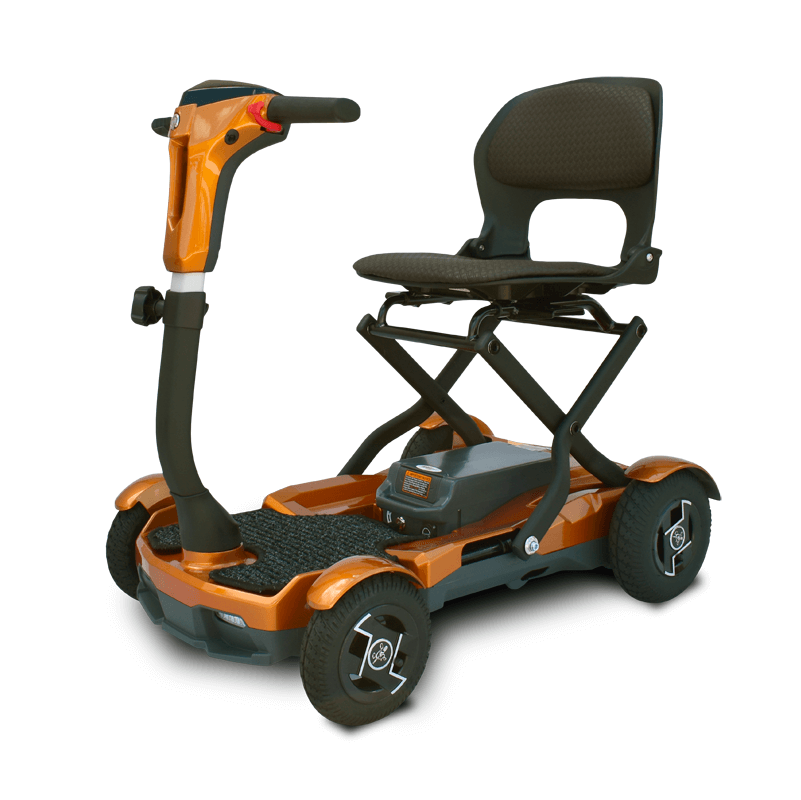

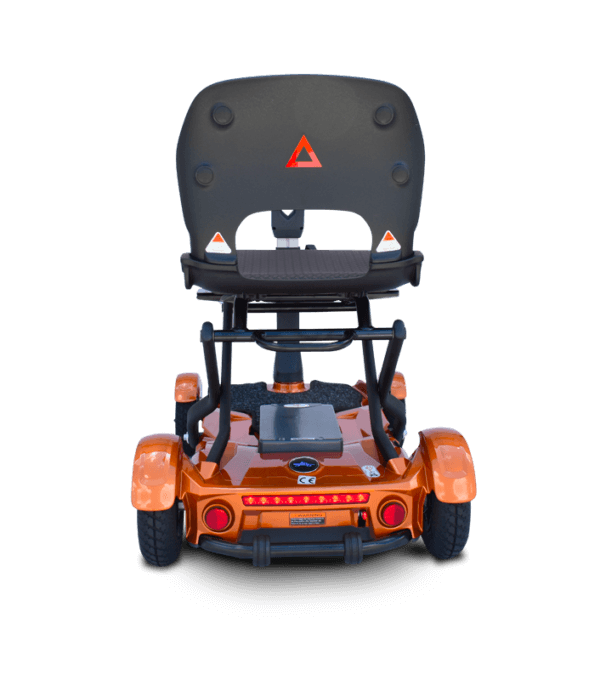

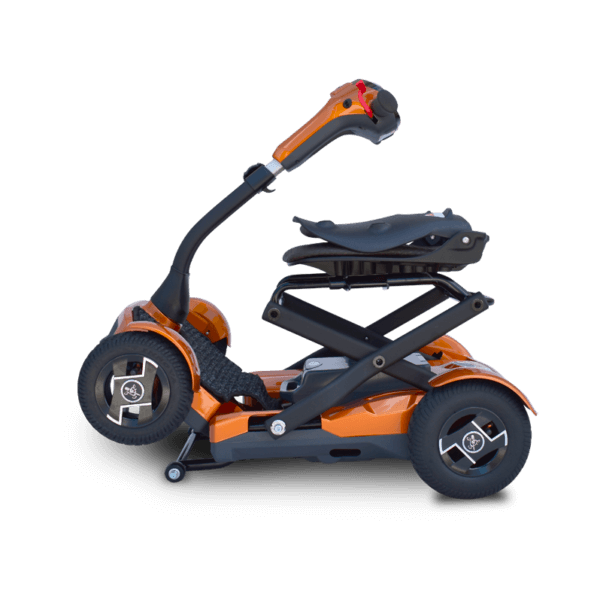

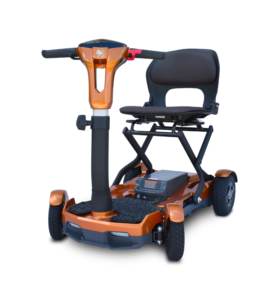

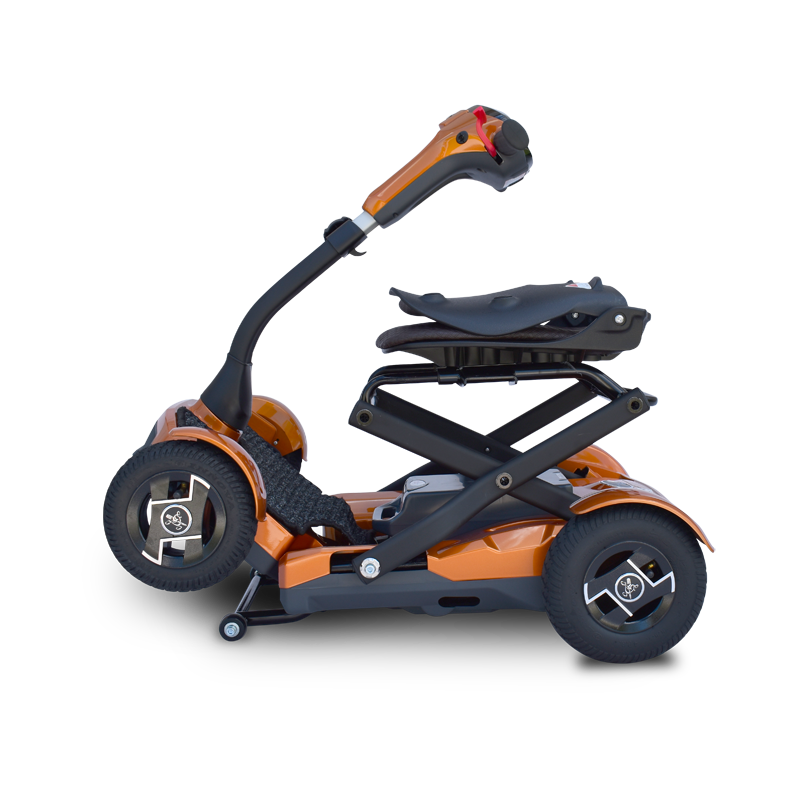

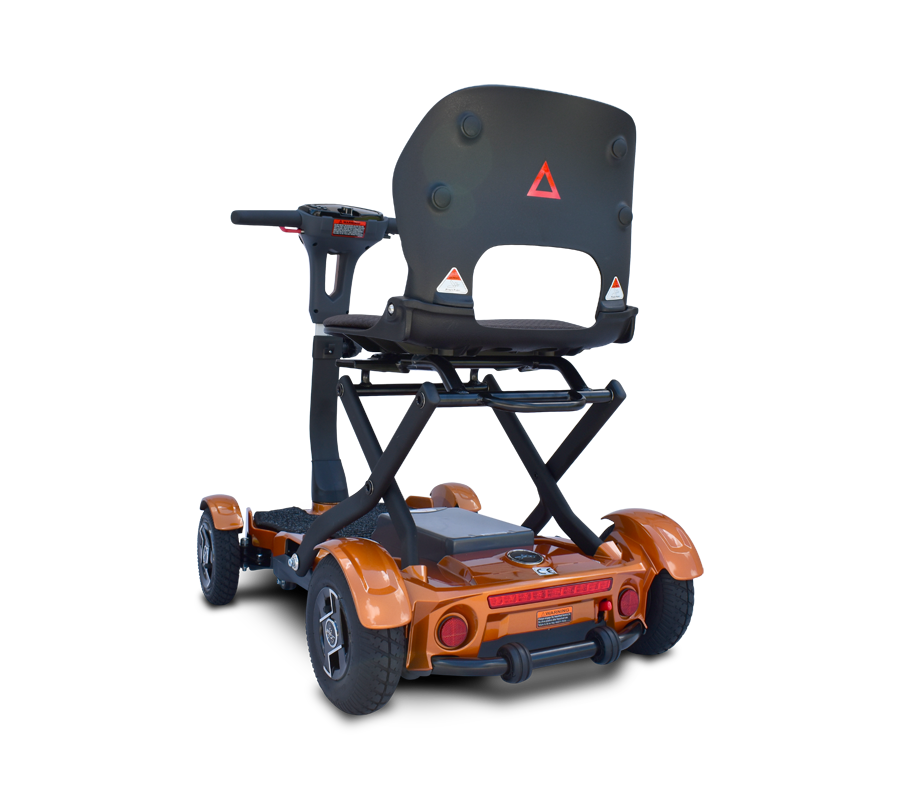

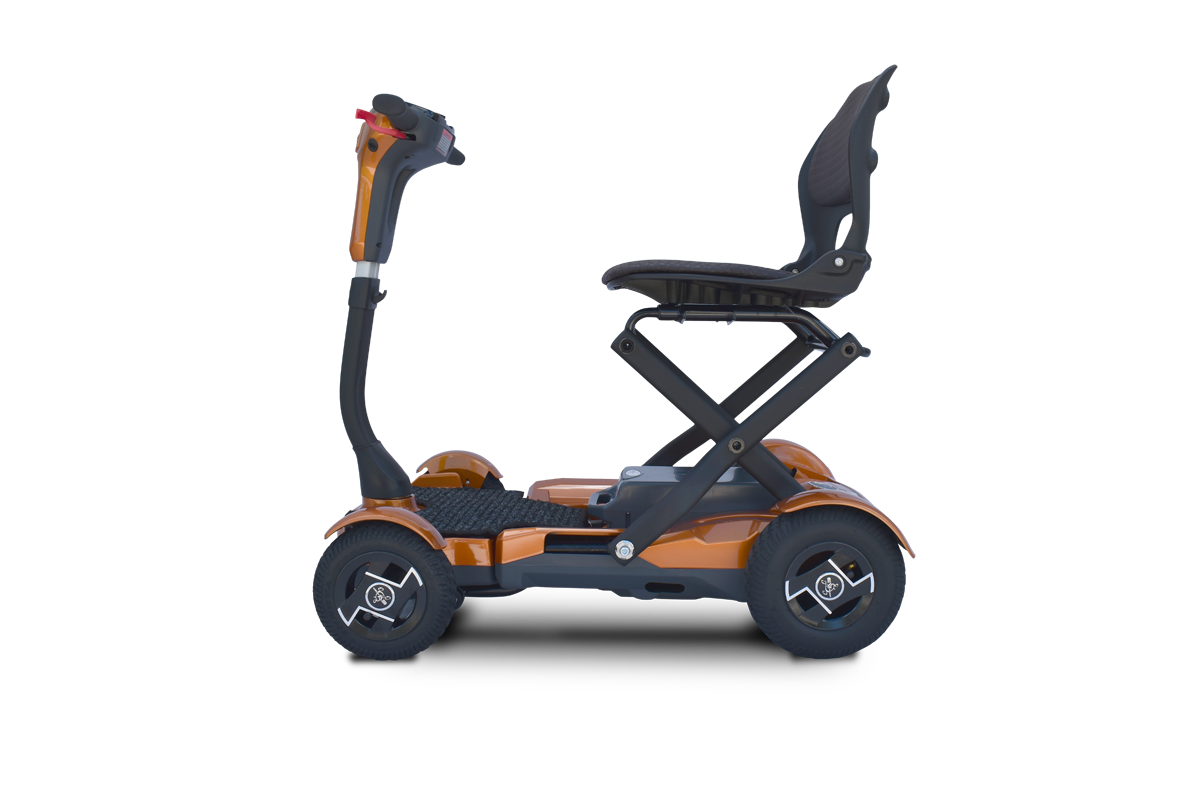

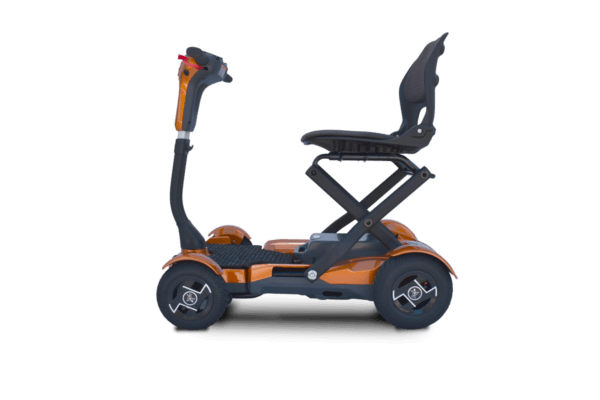

EV Ryder Teqno s26
$2,730.00
| Overall Length | 36” |
| Overall Width | 24” |
| Overall Height (at Maximum Tiller Height) | 35” |
| Overall Height – at Minimum Tiller Height | 31” |
| Legroom – Floorboard Length x Width | 15” x 16” |
| Deck Height – Floorboard to Floor | 6” |
| Ground Clearance | 2.5” |
| Turning Radius | 55” |

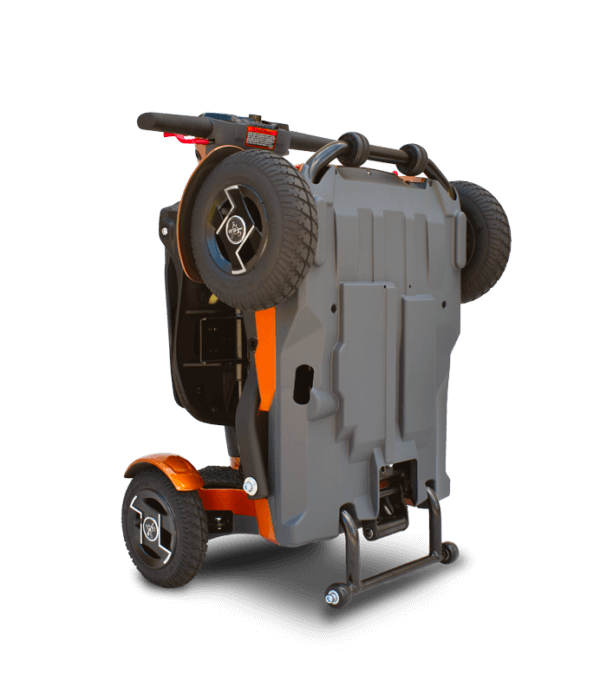

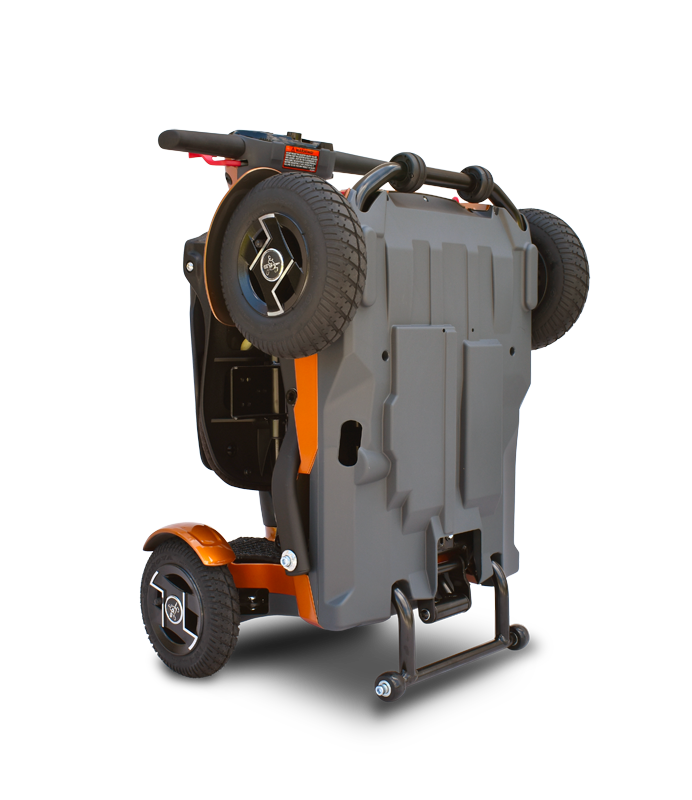

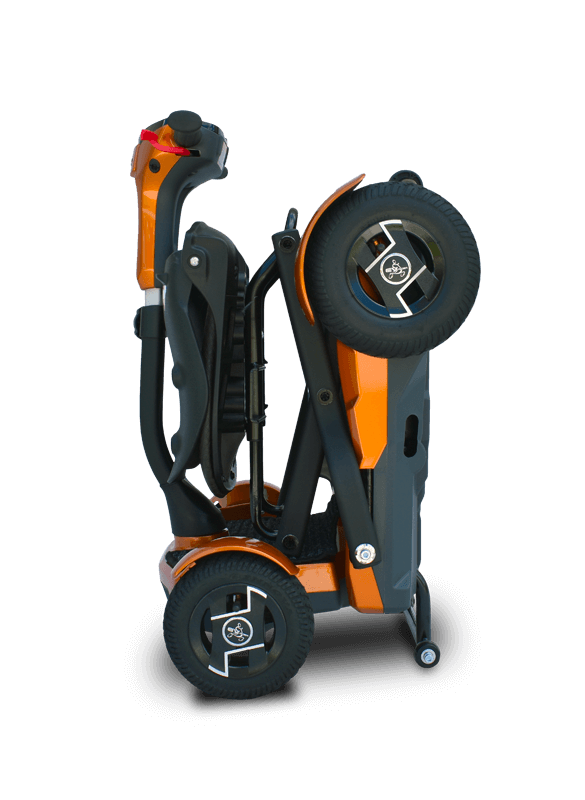

| Folded Overall Length | 32” |
| Folded Overall Width | 24” |
| Folded Overall Height | 20” |
| Weight with Battery | 73 Lbs |
| Weight without Batteries | 65 Lbs |
| Seat Type | 16″ fish-on style |
| Seat – Width & Depth & Height | 15” x 13” x 16” |
| Seat – Cushion Thickness | 1.5” |
| Seat Height – Cushion to Deck | 22” |
| Seat Height – Cushion to Floor | 17” |

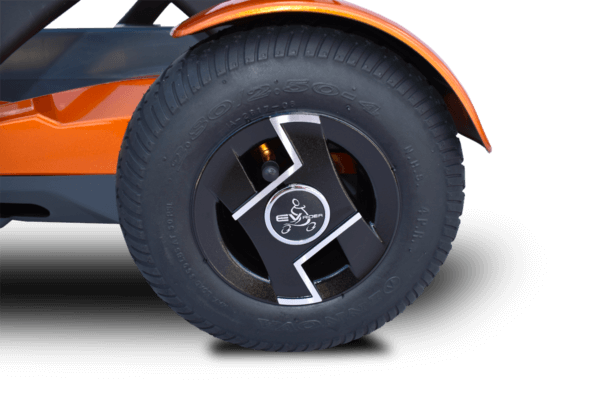

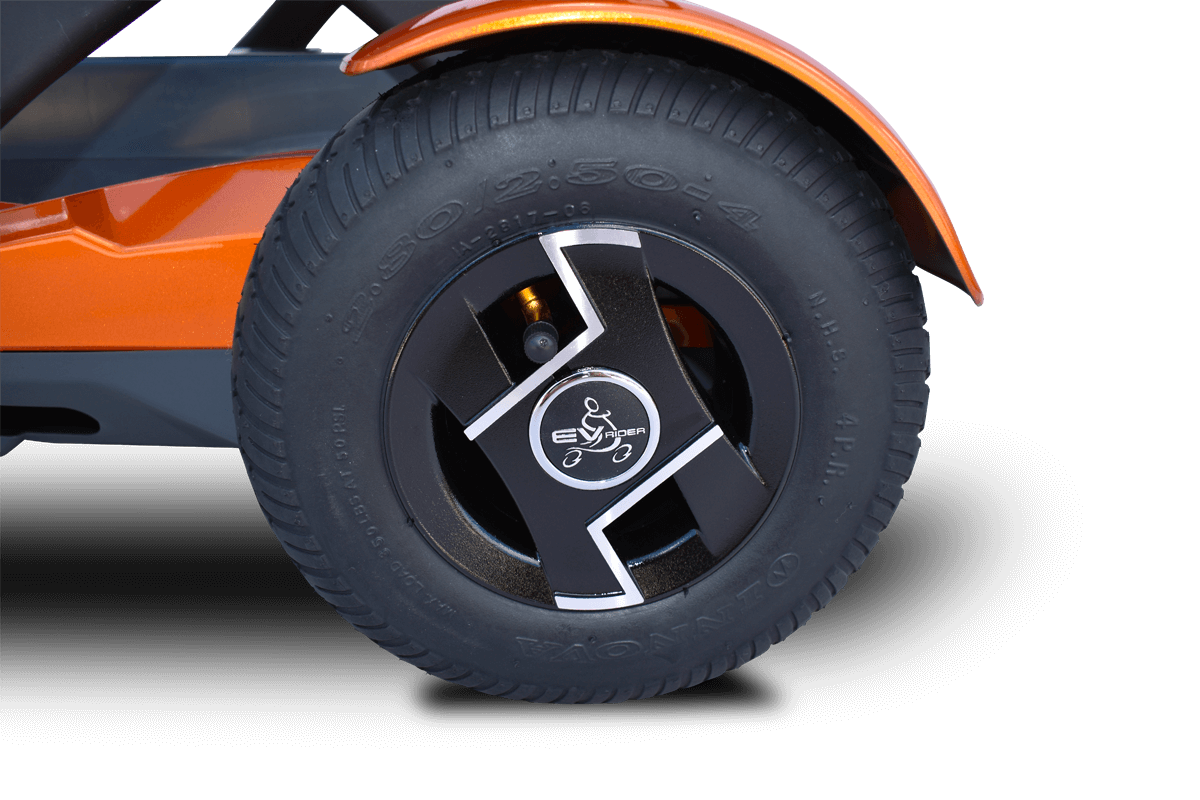

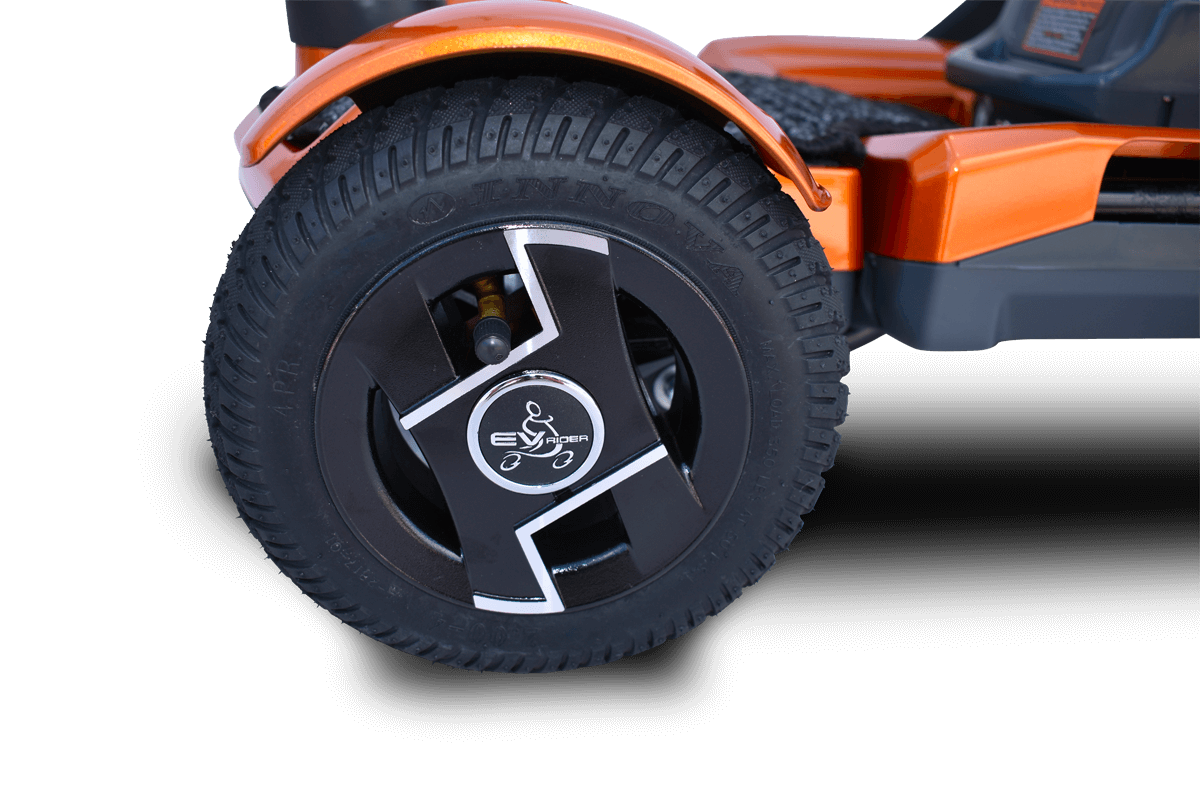

| Tire Type | Pneumatic tire |
| Rim Type Rear | Outer Rim – AluminumInner Rim – Industrial Plastic |
| Rim Type Front | Outer Rim – AluminumInner Rim – Industrial Plastic |
| OEM Spec Rear | N/A |
| Outside Diameter Rear | 9” |
| Tire Width Rear | 3” |
| OEM Spec Front | N/A |
| Outside Diameter Front | 8” |
| Tire Width Front | 2” |

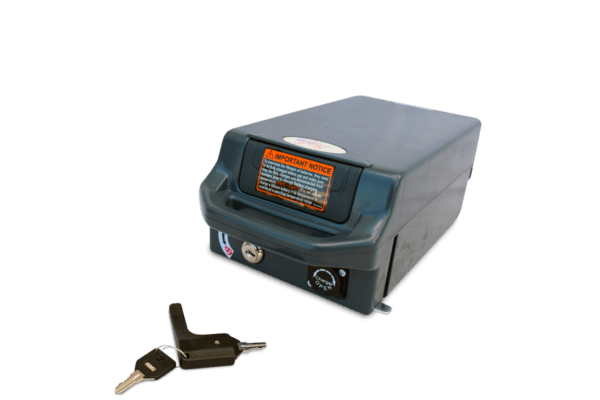

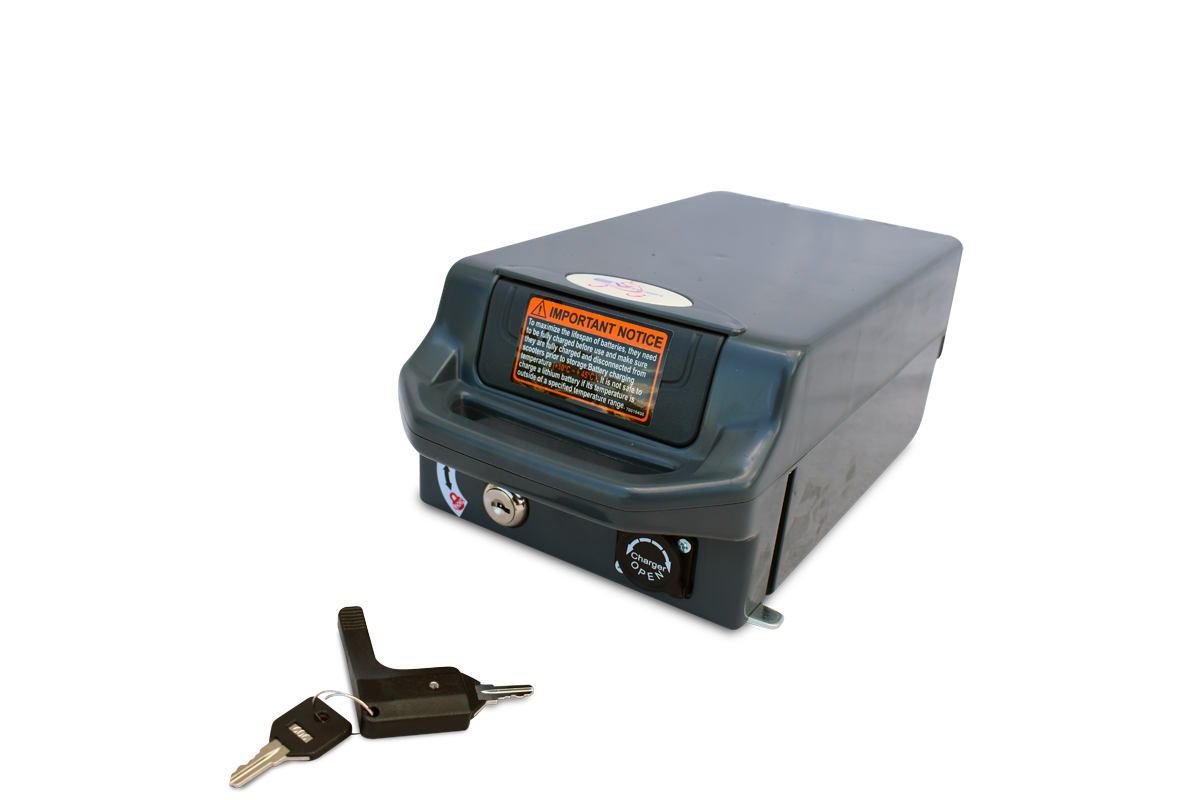

| Battery Type | 25.2V 11.5 AH Lithium battery |
| Brake System | Electromagnetic brake |
| Climbing Angle – Maximum Recommended | 3° |
| Charger Type | 2.5 Amp Charger |
| Charging Time | 8 hr |
| Controller | Dynamic R‐series 50A |
| *Driving Range | Up to 9 miles |
| Load Capacity | 250 Lbs |
| Motor & Drive Location | 21:1 270W 4800RPM |
| *Speed – Maximum | 6mph |
| Colors | Red Metallic/ Gold Metallic |
| Tiller Type | T-Bar |
| Throttle Control Type | Pot Meter |
 |
2” x 2” |
